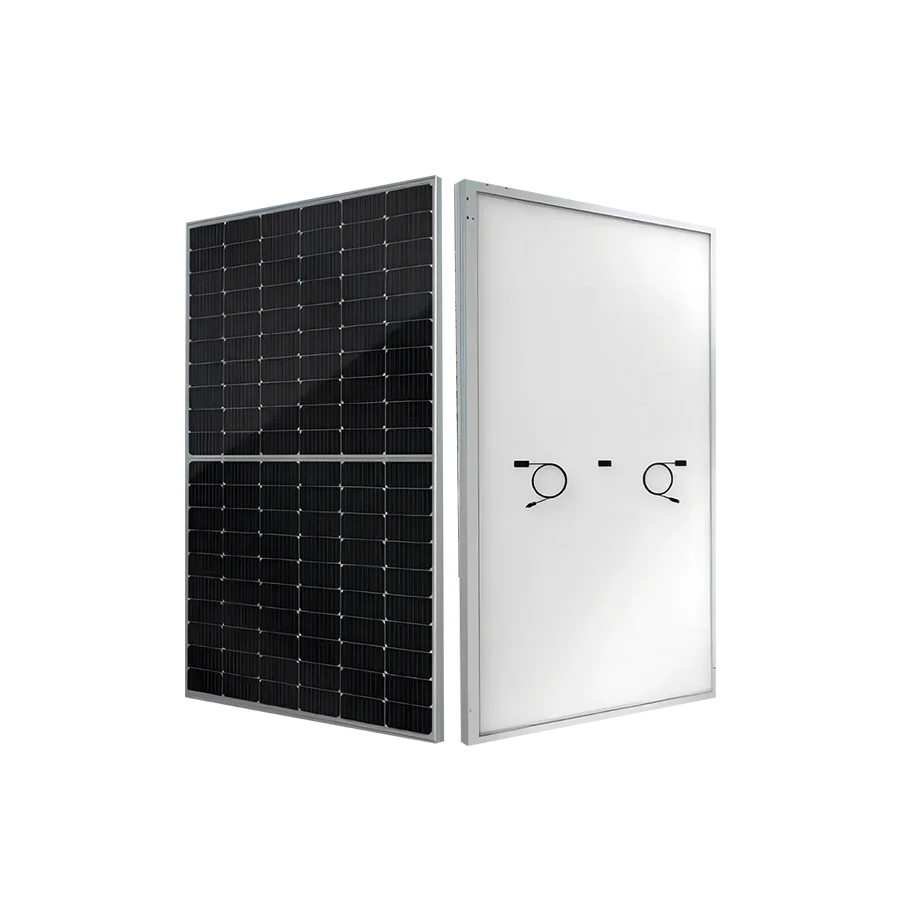

XJXR-NM60S-Beijing Awaken SolarTechnology Co., Ltd

15-years Product warranty

30-years Linear Power warranty

Piece/Pallet :31

744

Piece/Container (40HQ) :744

Efficient, advanced technology

Applying advanced solar cell technology to 182mm arge size silicon wafers to improve the power and efficiency of modules.

Greater consistency

Highly automatic, full production line advanced production equipment; lossless cutting scribing; intelligent product quality monitoring system.

Higher reliability

Grade A application, grade ll safety, grade C fireproofing; excellent low light, high resistance to salt spray, and ammonia corrosion.

Higher customer value

Effectively reduced BOS cost,lower KWH cost,improved project profitability.

Higher power generation performance

Lower temperature coefficient (-0.29%) and operating temperature and higher power generation; half-cell technology producing greater resistance to heat spots.

Excellent mechanical strength

Passing frontal 5400Pa snow pressure test on the front and backside 2400Pa wind pressure certification test.

Efficient, advanced technology

Applying advanced solar cell technology to 182mm arge size silicon wafers to improve the power and efficiency of modules.
Greater consistency

Highly automatic, full production line advanced production equipment; lossless cutting scribing; intelligent product quality monitoring system.
Higher reliability

Grade A application, grade ll safety, grade C fireproofing; excellent low light, high resistance to salt spray, and ammonia corrosion.

Higher customer value

Effectively reduced BOS cost,lower KWH cost,improved project profitability.
Higher power generation performance

Lower temperature coefficient (-0.29%) and operating temperature and higher power generation; half-cell technology producing greater resistance to heat spots.
Excellent mechanical strength

Passing frontal 5400Pa snow pressure test on the front and backside 2400Pa wind pressure certification test.

15-years Product warranty

30-years Linear Power warranty

Piece/Pallet :31

744

Piece/Container (40HQ) :744

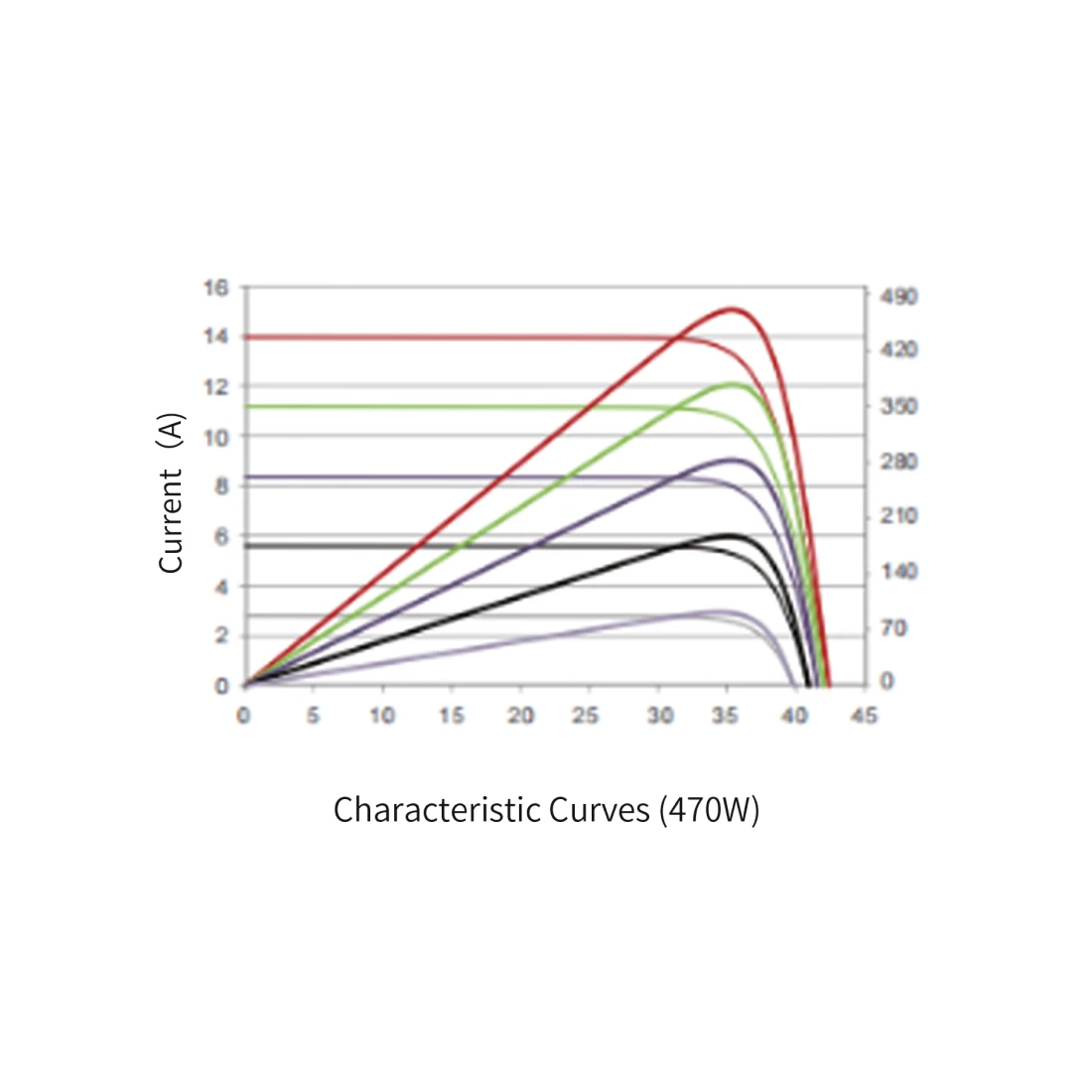

Electrical Data (SCT)

STC: AM1.5,lrradiance 1000W/m², Cell Temperature 25°C

Peak Power(Pmax)(Wp)	465	470	475	480
Power Output Tolerance(W)	0~+3%	0~+3%	0~+3%	0~+3%
MPP Voltage(Vmp)(V)	34.89	35.05	35.21	35.38
MPP Current (lmp )(A)	13.33	13.41	13.49	13.57
Open Circuit Voltage( Voc)(V)	42.22	42.38	42.54	42.71
Short Circuit Current(Isc )(A)	14.07	14.15	14.23	15.31
Module Efficiency ( %)	21.55	21.75	22.01	22.24

Module Efficiency ( %)

NMOT:AM1.5, Irradiance 800W/m²,Ambient Temperature 20℃ , Wind Speed1m/s.

Peak Power(Pmax)(Wp)	349	353	357	361
MPP Voltage(Vmp)(V)	32.80	32.90	33.18	33.36
MPP Current (lmp )(A)	10.64	10.70	10.76	10.82
Open Circuit Voltage( Voc)(V)	40.63	40.81	40.89	41.17
Short Circuit Current(Isc )(A)	11.26	11.32	11.38	11.44

Mechanical Properties

Cell Size & Type	182mmX182mmTOPCon Monocrystalline silicon
Number of Cells	120Slices

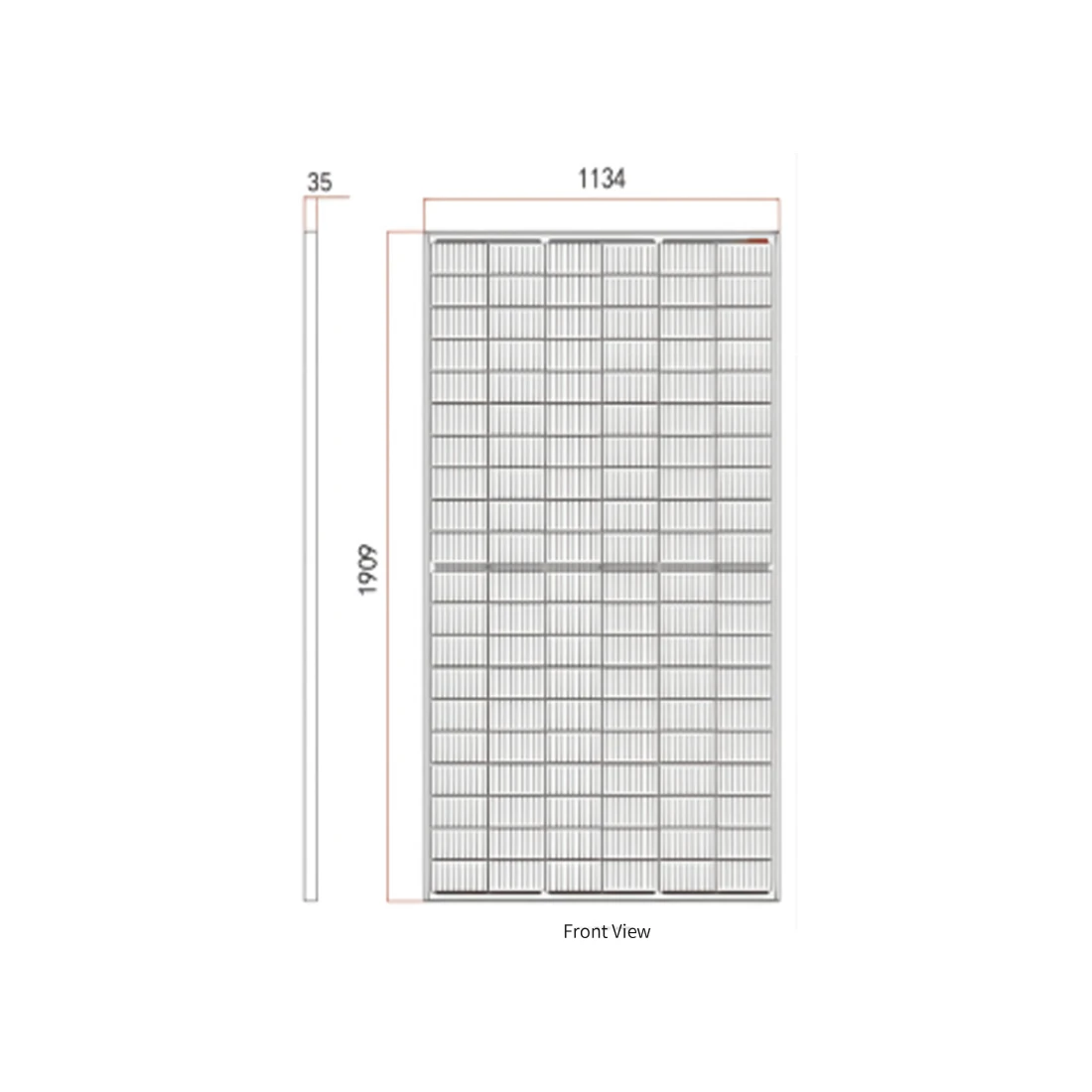

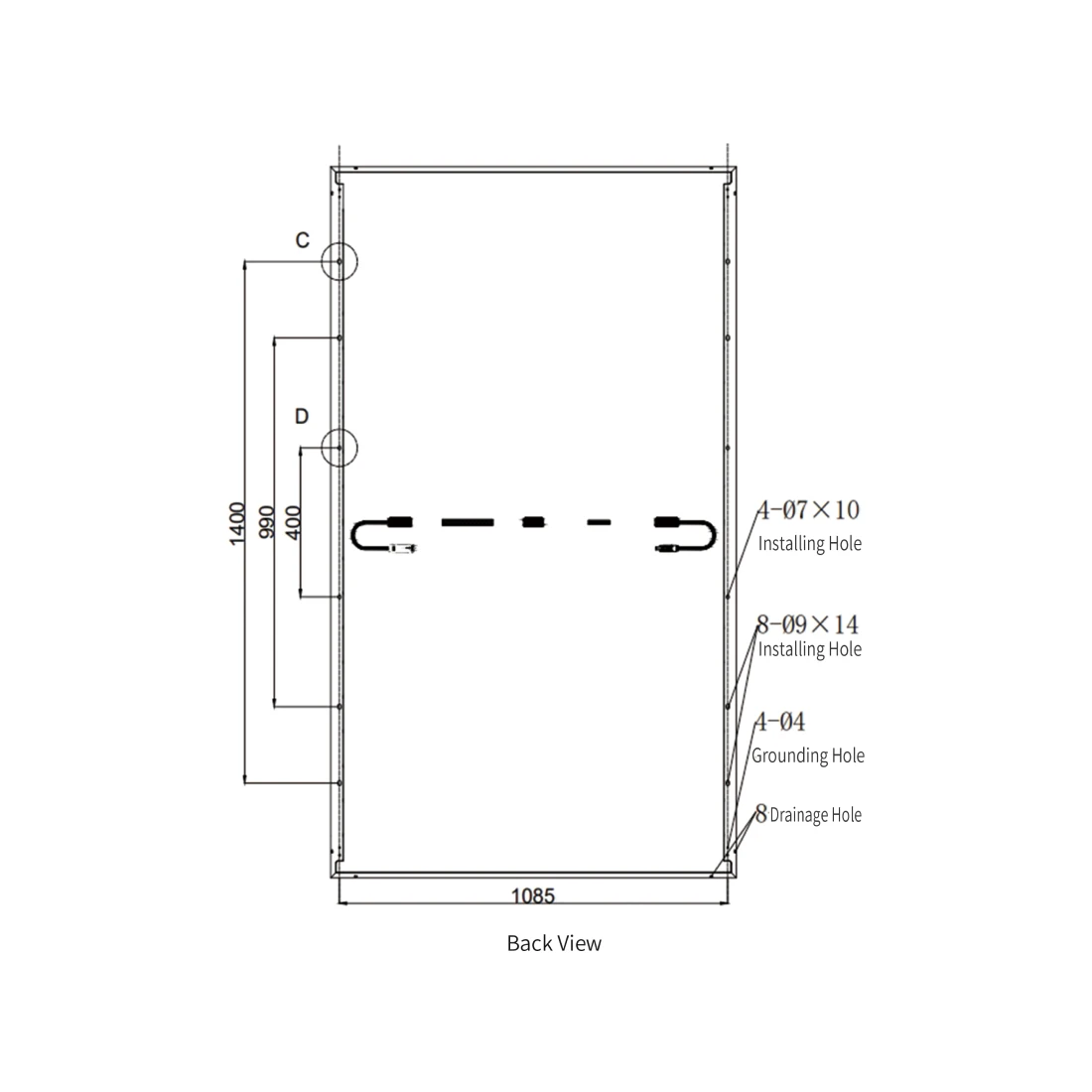

Module Dimension	1909X1134X30mm
Module Weight	24.5kg
Front Glass Thickness	3.2mm Coated semi-tempered glass
Encapsulating Material	EVA
Backboard	White
Frame	35mm Frame
Junction Box	Level of protection IP68
Cable	4.0mm²,350mmSpecial cable for PV (Cable length can be customized)
Connector	MC4、QC4

Temperature Coefficient

Nominal Operating Cell Temperature(NOCT)		41℃(土3℃)
Temperature Coefficient of Pmax		-0.29%/℃
Temperature Coefficient of Voc		-0.25%/℃
Temperature Coefficient of lsc		0.045%/℃

Operating Properties

Do not parallel two or more module in the same confluence box fuse

Operating Temperature(°c)	-40~+85°C
Maximum System Voltage (v)	1500V DC (IEC)
Maximum Series Fuse Rating(A)	25A
