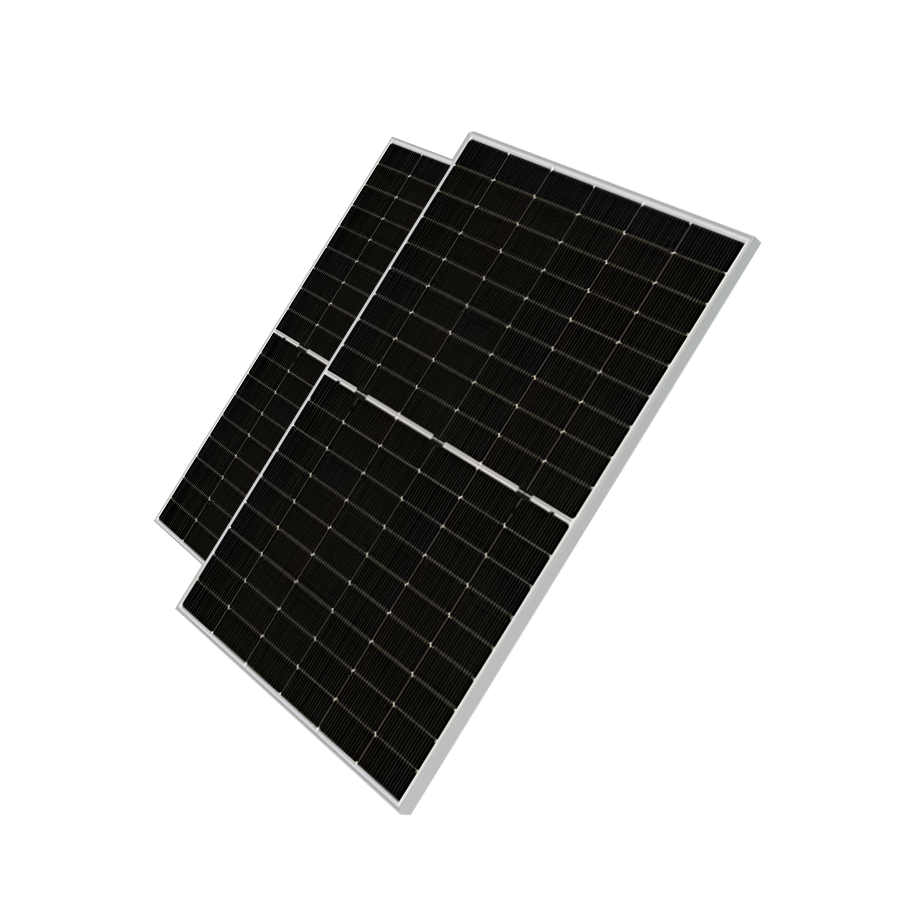

    XJXR-NM54D
    108Slices
    Double Glass Mono PV Module
    22.2%
    Maximum Module Efficiency
    1500V
    Maximum System Voltage
    415-435W
    Range of Power Output
    15
    15-years Product warranty
    30
    30-years Linear Power warranty
    36
    Piece/Pallet:36
    936
    Piece/Container (40HQ) :936
    Efficient, advanced technology
    Applying advanced solar cell technology to 182mm arge size silicon wafers to improve the power and efficiency of modules.
    Greater consistency
    Highly automatic, full production line advanced production equipment; lossless cutting scribing; intelligent product quality monitoring system.
    Higher reliability
    Grade A application, grade ll safety, grade C fireproofing; excellent low light, high resistance to salt spray, and ammonia corrosion.
    Higher customer value
    Effectively reduced BOS cost,lower KWH cost,improved project profitability.
    Higher power generation performance
    Lower temperature coefficient (-0.29%) and operating temperature and higher power generation; half-cell technology producing greater resistance to heat spots.
    Excellent mechanical strength
    Passing frontal 5400Pa snow pressure test on the front and backside 2400Pa wind pressure certification test.
    • Efficient, advanced technology
      Applying advanced solar cell technology to 182mm arge size silicon wafers to improve the power and efficiency of modules.
    • Greater consistency
      Highly automatic, full production line advanced production equipment; lossless cutting scribing; intelligent product quality monitoring system.
    • Higher reliability
      Grade A application, grade ll safety, grade C fireproofing; excellent low light, high resistance to salt spray, and ammonia corrosion.
    • Higher customer value
      Effectively reduced BOS cost,lower KWH cost,improved project profitability.
    • Higher power generation performance
      Lower temperature coefficient (-0.29%) and operating temperature and higher power generation; half-cell technology producing greater resistance to heat spots.
    • Excellent mechanical strength
      Passing frontal 5400Pa snow pressure test on the front and backside 2400Pa wind pressure certification test.
    15
    15-years Product warranty
    30
    30-years Linear Power warranty
    36
    Piece/Pallet:36
    936
    Piece/Container (40HQ) :936
    Electrical Data (SCT)
    • Electrical Data (SCT)
    • With Different Power Generation Gain
    • Electrical Data (NMOT)
    • Mechanical Properties
    • Temperature Coefficient
    • Operating Properties

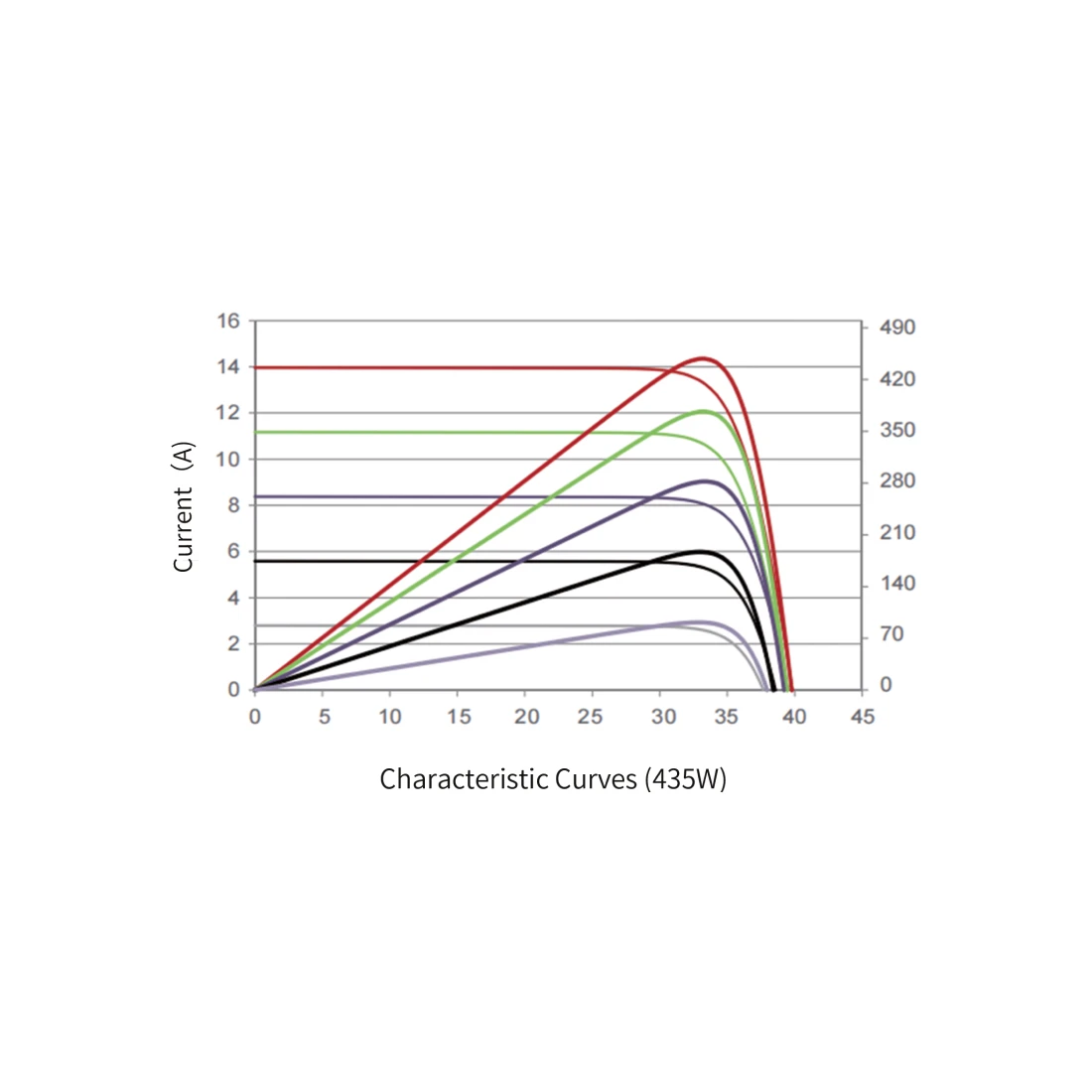

    Electrical Data (SCT)
    STC: AM1.5,lrradiance 1000W/m², Cell Temperature 25°C.
    Peak Power(Pmax)(Wp)
    		 415 420 425 430 435
    Power Output Tolerance(W)
    		 0~+3% 0~+3% 0~+3% 0~+3% 0~+3%
    MPP Voltage(Vmp)(V)
    		 31.79 31.79 32.16 32.34 32.81
    MPP Current (lmp )(A)
    		 13.06 13.14 13.22 12.30 13.41
    Open Circuit Voltage( Voc)(V)
    		 38.33 38.46 38.59 38.72 39.38
    Short Circuit Current(Isc )(A)
    		 14.01 14.09 14.17 14.25 13.86
    Module Efficiency ( %)
    		 21.30 21.50 21.80 22.00 22.20
    With Different Power Generation Gain
    regarding 10% irradiance ratio as an example
    Peak Power(Pmax)(Wp)
    		 457 462 46B 473 479
    MPP Voltage(Vmp)(V) 31.79 31.97 32.16 32.34 32.81
    MPP Current (lmp )(A) 14.37 14.45 14.54 14.63 14.75
    Open Circuit Voltage( Voc)(V) 38.33 38.46 38.59 38.72 39.38
    Short Circuit Current(Isc )(A) 15.41 15.50 15.59 15.68 15.78
    Electrical Data (NMOT)
    NMOT:AM1.5, Irradiance 800W/m²,Ambient Temperature 20℃ , Wind Speed1m/s.
    Peak Power(Pmax)(Wp) 315 318 322 326 330
    MPP Voltage(Vmp)(V) 29.80 30.00 30.20 30.30 30.50
    MPP Current (lmp )(A) 10.56 10.62 10.67 10.74 10.80

    Open Circuit Voltage( Voc)(V)

    		 36.00 36.20 36.40 36.60 36.80
    Short Circuit Current(Isc )(A) 11.22 11.27 11.33 11.38 11.44

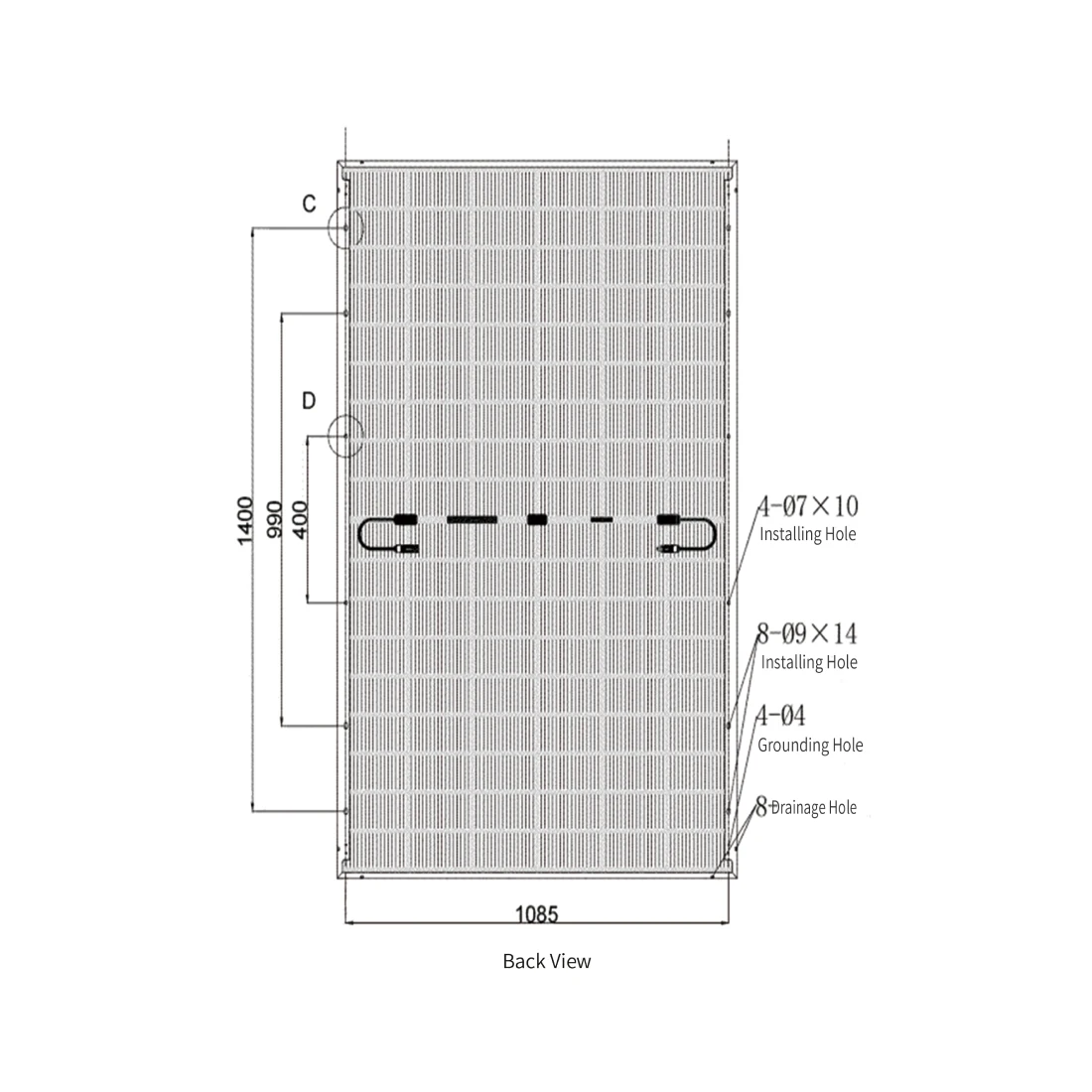

    Mechanical Properties
    Cell Size & Type
    		 182mmX182mmTOPCon Monocrystalline silicon
    Number of Cells
    		 108 Slices

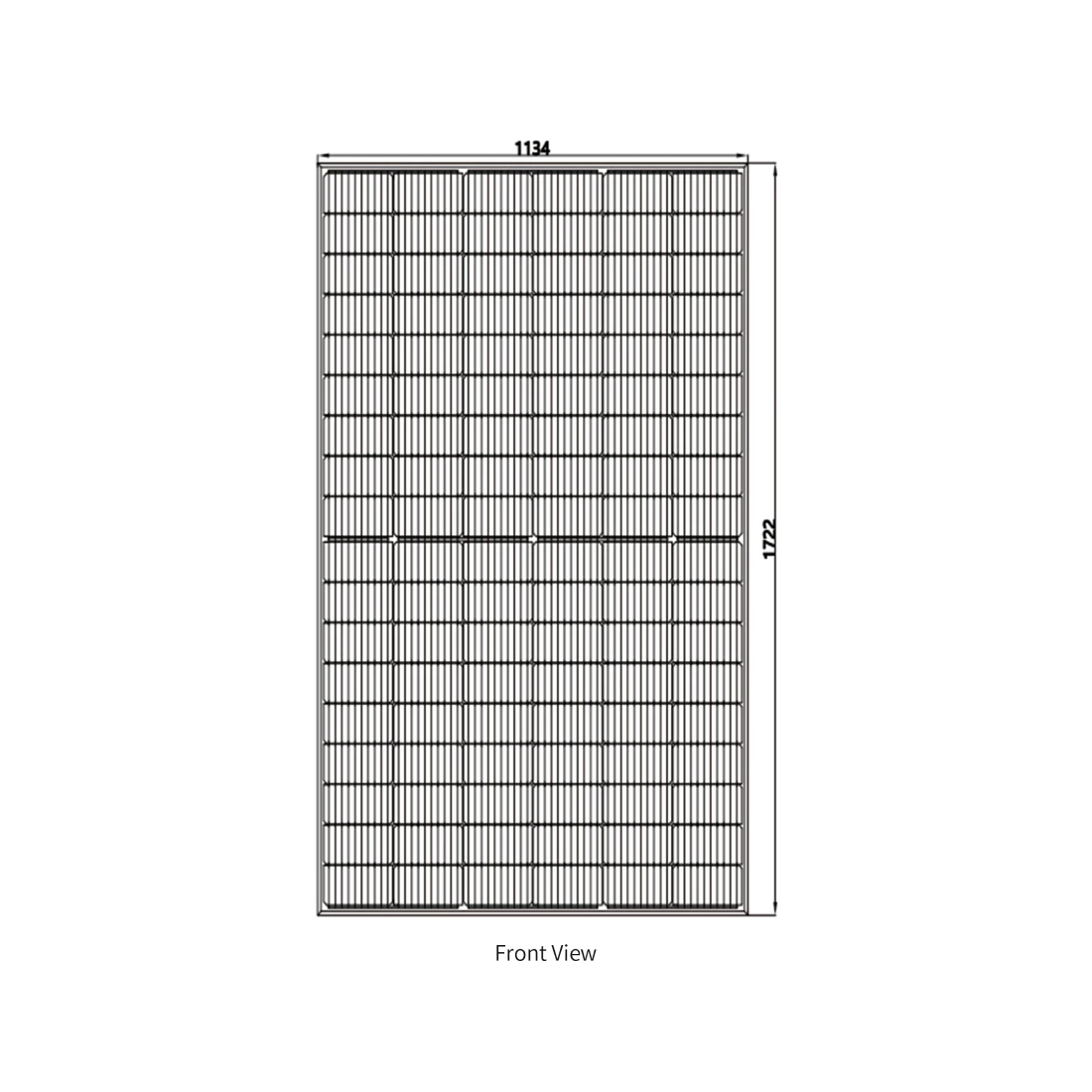

    Module Dimension
    		 1722X1134X30mm
    Module Weight
    		 24kg
    Front Glass Thickness
    		 2.0mm Coated semi-tempered glass
    Encapsulating Material
    		 POE
    Back Glass Thickness
    		 2.0mm Glazed semi-tempered glass
    Frame
    		 30mm Anodized Aluminium Alloy
    Junction Box
    Level of protection IP68
    Cable
    		 4.0mm²,350mm  Special cable for PV

    (Cable length can be customized)
    Connector
    		 MC4、QC4
    Temperature Coefficient
    Nominal Operating Cell Temperature(NOCT)
    		 41℃(土2℃)
    Temperature Coefficient of Pmax
    		 -0.35%/℃
    Temperature Coefficient of Voc
    		 -0.27%/℃
    Temperature Coefficient of lsc
    		 0.045%/℃
    Operating Properties
    Do not parallel two or more module in the same confluence box fuse
    Operating Temperature(°c)
    		 -40~+85°C
    Maximum System Voltage (v)
    		 1500V DC (IEC)
    Maximum Series Fuse Rating(A)
    		 25A
