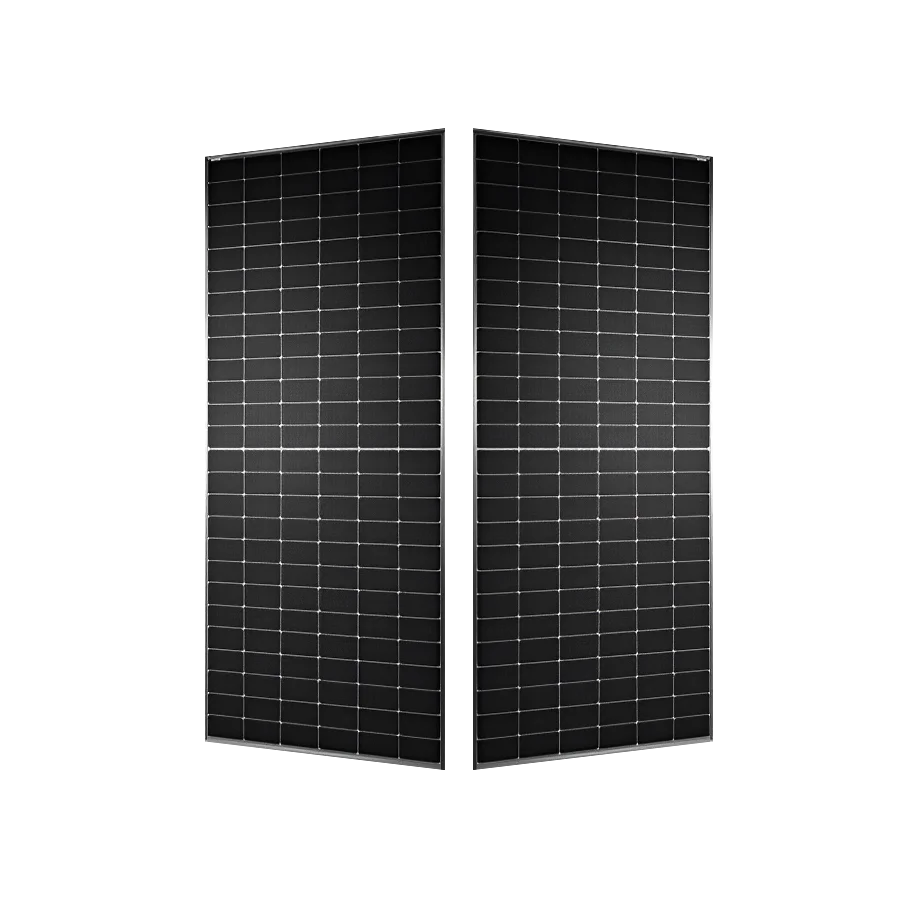

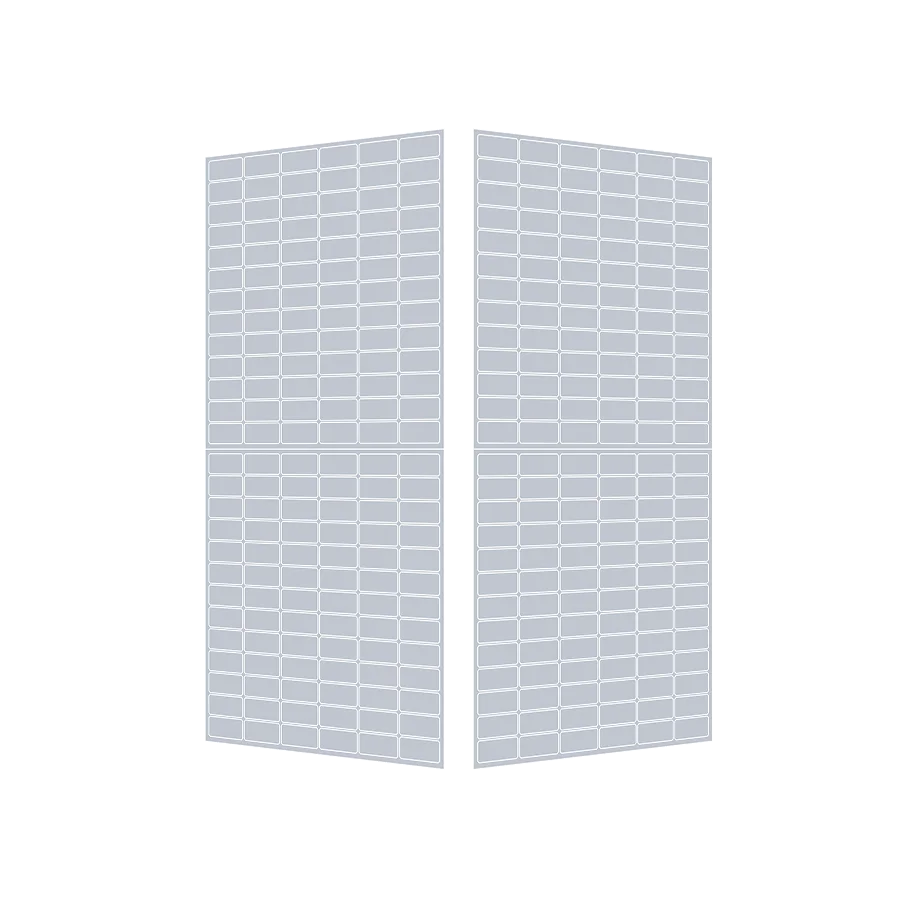

XJXR-NM78D -Beijing Awaken SolarTechnology Co., Ltd

15-years Product warranty

30-year Linear Power warranty

Piece/Pallet:36

576

Piece/Container (40HQ) :576

Efficient, advanced technology

Applying advanced solar cell technology to 182mm arge size silicon wafers to improve the power and efficiency of modules.

Greater consistency

Highly automatic, full production line advanced production equipment; lossless cutting scribing; intelligent product quality monitoring system.

Higher reliability

Grade A application, grade ll safety, grade C fireproofing; excellent low light, high resistance to salt spray, and ammonia corrosion.

Higher customer value

Effectively reduced BOS cost,lower KWH cost,improved project profitability.

Higher power generation performance

Lower temperature coefficient (-0.29%) and operating temperature and higher power generation; half-cell technology producing greater resistance to heat spots.

Excellent mechanical strength

Passing frontal 5400Pa snow pressure test on the front and backside 2400Pa wind pressure certification test.

Efficient, advanced technology

Applying advanced solar cell technology to 182mm arge size silicon wafers to improve the power and efficiency of modules.
Greater consistency

Highly automatic, full production line advanced production equipment; lossless cutting scribing; intelligent product quality monitoring system.
Higher reliability

Grade A application, grade ll safety, grade C fireproofing; excellent low light, high resistance to salt spray, and ammonia corrosion.

Higher customer value

Effectively reduced BOS cost,lower KWH cost,improved project profitability.
Higher power generation performance

Lower temperature coefficient (-0.29%) and operating temperature and higher power generation; half-cell technology producing greater resistance to heat spots.
Excellent mechanical strength

Passing frontal 5400Pa snow pressure test on the front and backside 2400Pa wind pressure certification test.

15-years Product warranty

30-year Linear Power warranty

Piece/Pallet:36

576

Piece/Container (40HQ) :576

Electrical Data (SCT)

STC: AM1.5,lrradiance 1000W/m², Cell Temperature 25°C

Peak Power(Pmax)(Wp)	615	620	625	630	635
Power Output Tolerance(W)	5	5	5	5	5
MPP Voltage(Vmp)(V)	46.18	43.38	46.58	46.78	46.98
MPP Current (lmp )(A)	13.32	13.37	13.42	13.47	13.52
Open Circuit Voltage( Voc)(V)	55.40	55.60	55.80	56.00	56.20
Short Circuit Current(Isc )(A)	14.14	14.18	14.22	14.26	14.30
Module Efficiency ( %)	22.0	22.2	22.4	22.5	22.7

With Different Power Generation Gain

5%	Peak Power(Pmax)(Wp)	645.8	651.0	656.3	661.5	666.8
5%	Module Efficiency ( %)	23.1	23.3	23.5	23.7	23.9
15%	Peak Power(Pmax)(Wp)	707.3	713.0	718.8	724.5	730.3
15%	Module Efficiency ( %)	25.3	25.5	25.7	25.9	26.1
25%	Peak Power(Pmax)(Wp)	768.8	775.0	781.3	787.5	793.8
25%	Module Efficiency ( %)	27.5	27.7	27.9	28.2	28.4

Electrical Data (NMOT)

NMOT:AM1.5, Irradiance 800W/m²,Ambient Temperature 20℃ , Wind Speed1m/s.

Peak Power(Pmax)(Wp)	462.4	466.2	470.0	473.7	476.1
MPP Voltage(Vmp)(V)	43.02	43.07	43.25	43.44	43.62
MPP Current (lmp )(A)	10.72	10.79	10.83	10.87	10.91
Open Circuit Voltage( Voc)(V)	52.62	52.81	53.00	53.19	53.38
Short Circuit Current(Isc )(A)	11.47	11.51	11.54	11.57	11.61

Mechanical Properties

Cell Size & Type	182mmX182mm TOPCon Monocrystalline silicon
Number of Cells	156 Slices
Module Dimension	2465X1134X30mm
Module Weight	34.6kg
Front Glass Thickness	2.0mm Coated semi-tempered glass
Encapsulating Material	POE
Back Glass Thickness	2.0mm Glazed semi-tempered glass
Frame	30m边框
Junction Box	Level of protection IP68
Cable	4.0mm²
Connector	MC4、QC4

Temperature Coefficient

NMOT		45℃土2℃
Temperature Coefficient of Pmax		-0.30%/℃
Temperature Coefficient of Voc		-0.25%/℃
Temperature Coefficient of lsc		0.046%/℃

Operating Properties

Do not parallel two or more module in the same confluence box fuse

Operating Temperature(°c)	-40~+85°C
Maximum System Voltage (v)	1500V DC (IEC)
Maximum Series Fuse Rating(A)	30A
