XJXR-PM60D-Beijing Awaken SolarTechnology Co., Ltd

Efficient, advanced technology

Applying advanced solar cell technology to 182mm arge size silicon wafers to improve the power and efficiency of modules.

Greater consistency

Highly automatic, full production line advanced production equipment; lossless cutting scribing; intelligent product quality monitoring system.

Higher reliability

Grade A application, grade ll safety, grade C fireproofing; excellent low light, high resistance to salt spray, and ammonia corrosion.

Higher customer value

Effectively reduced BOS cost,lower KWH cost,improved project profitability.

Higher power generation performance

Lower temperature coefficient (-0.34%) and operating temperature and higher power generation; half-cell technology producing greater resistance to heat spots

Excellent mechanical strength

Passing frontal 5400Pa snow pressure test on the front and backside 2400Pa wind pressure certification test.

Efficient, advanced technology

Applying advanced solar cell technology to 182mm arge size silicon wafers to improve the power and efficiency of modules.
Greater consistency

Highly automatic, full production line advanced production equipment; lossless cutting scribing; intelligent product quality monitoring system.
Higher reliability

Grade A application, grade ll safety, grade C fireproofing; excellent low light, high resistance to salt spray, and ammonia corrosion.

Higher customer value

Effectively reduced BOS cost,lower KWH cost,improved project profitability.
Higher power generation performance

Lower temperature coefficient (-0.34%) and operating temperature and higher power generation; half-cell technology producing greater resistance to heat spots
Excellent mechanical strength

Passing frontal 5400Pa snow pressure test on the front and backside 2400Pa wind pressure certification test.

Electrical Data (SCT)

STC: AM1.5,lrradiance 1000W/m², Cell Temperature 25°C

Peak Power(Pmax)(Wp)	400	445	450	455	460	465	470
Power Output Tolerance(W)	0~+3%	0~+3%	0~+3%	0~+3%	0~+3%	0~+3%	0~+3%
MPP Voltage(Vmp)(V)	34.25	34.45	34.65	34.85	35.05	35.25	35.45
MPP Current (lmp )(A)	12.85	12.92	12.99	13.06	13.13	13.20	13.26
Open Circuit Voltage( Voc)(V)	41.2	41.4	41.6	41.8	42	42.20	42.40
Short Circuit Current(Isc )(A)	13.57	13.64	13.71	13.78	13.85	13.92	13.99
Module Efficiency ( %)	20.40	20.60	20.80	21.00	21.20	21.50	21.70

With Different Power Generation Gain

regarding 10% irradiance ratio as an example

Peak Power(Pmax)(Wp)	484	489.5	495	500.5	506	511.5	517
MPP Voltage(Vmp)(V)	34.25	34.45	34.65	34.85	35.05	35.25	35.45
MPP Current (lmp )(A)	14.135	14.212	14.289	14.366	14.443	14.52	14.597
Open Circuit Voltage( Voc)(V)	41.2	41.4	41.6	41.8	42	42	42.4
Short Circuit Current(Isc )(A)	14.927	15.004	15.081	15.158	15.235	15.321	15.389

Electrical Data (NMOT)

NMOT:AM1.5, Irradiance 800W/m²,Ambient Temperature 20℃ , Wind Speed1m/s.

Peak Power(Pmax)(Wp)	322	336	340	344	348	352	356
MPP Voltage(Vmp)(V)	31.86	32.1	32.34	32.58	32.82	33.06	33.3
MPP Current (lmp )(A)	10.43	10.47	10.52	10.56	10.61	10.65	10.69
Open Circuit Voltage( Voc)(V)	38.62	38.79	38.96	39.13	39.3	39.47	39.64
Short Circuit Current(Isc )(A)	10.91	10.96	11.01	11.06	11.11	11.16	11.21

Mechanical Properties

Cell Size & Type	182mmX182mmPERC
Number of Cells	120片

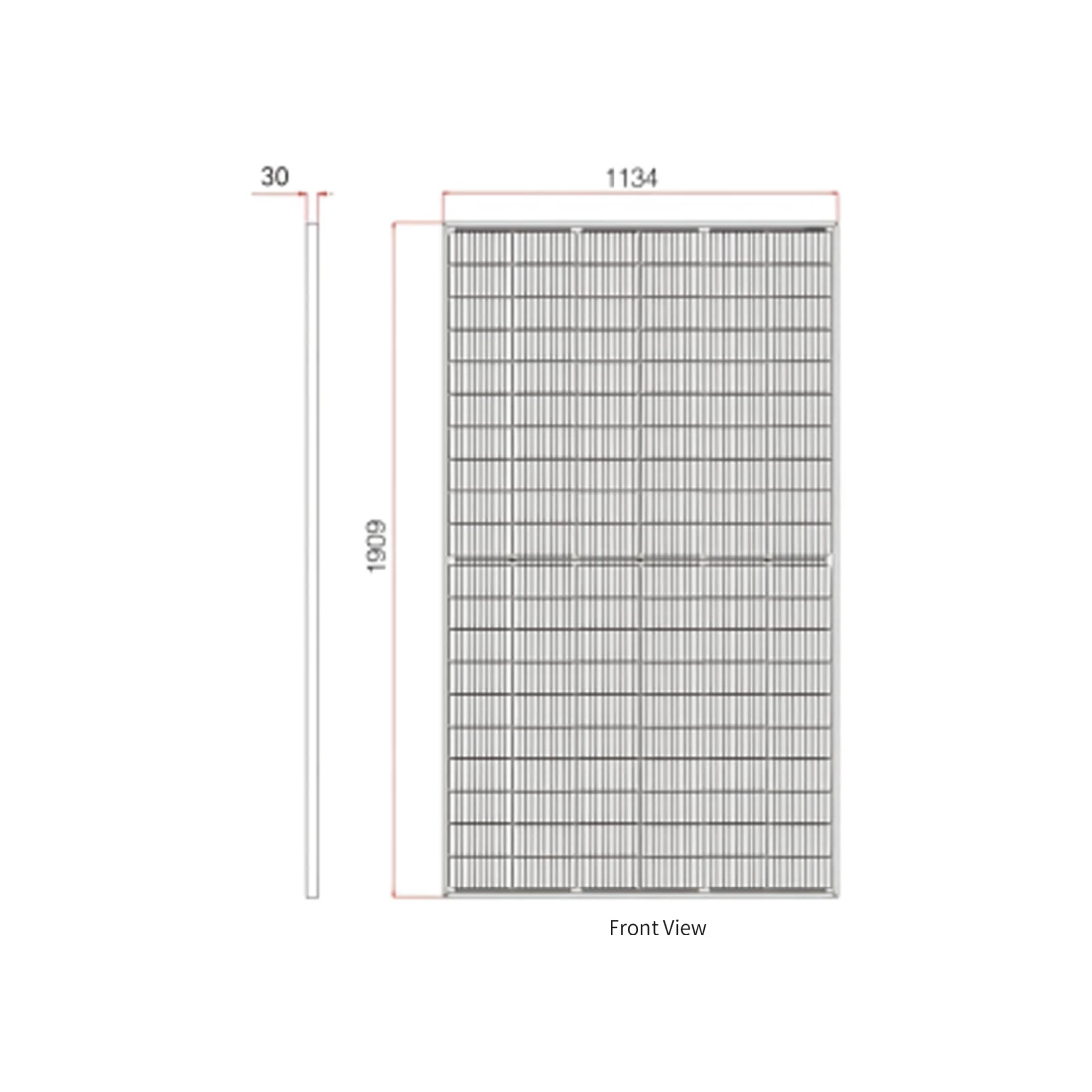

Module Dimension	1909X1134X30mm
Module Weight	27kg
Front Glass Thickness	2.0mmCoated tempered glass
Encapsulating Material	POE
Back Glass Thickness	2.0mm Glazed semi-tempered glass
Frame	35mm
Junction Box	Level of protectionIP68
Cable	4.0mm²,350mmSpecial cable for PV (Cable length can be customized)
Connector	MC4、QC4

Temperature Coefficient

Nominal Operating Cell Temperature(NOCT)		41℃(土2℃)
Temperature Coefficient of Pmax		-0.350%/℃
Temperature Coefficient of Voc		-0.27%/℃
Temperature Coefficient of lsc		0.045%/℃

Operating Properties

Do not parallel two or more module in the same confluence box fuse

Operating Temperature(°c)	-40~+85°C
Maximum System Voltage (v)	1500V DC (IEC)
Maximum Series Fuse Rating(A)	25A
