XJXR-PG66D-Beijing Awaken SolarTechnology Co., Ltd

15-years Product warranty

30-years Linear Power warranty

Piece/Pallet :31

558

Piece/Container (40HQ) :558

Efficient, advanced technology

Applying advanced solar cell technology to 210mm arge size silicon wafers to improve the power and efficiency of modules.

Greater consistency

Highly automatic, full production line advanced production equipment; lossless cutting scribing; intelligent product quality monitoring system.

Higher reliability

Grade A application, grade ll safety, grade C fireproofing; excellent low light, high resistance to salt spray, and ammonia corrosion.

Higher customer value

Effectively reduced BOS cost,lower KWH cost,improved project profitability.

Higher power generation performance

Lower temperature coefficient (-0.34%) and operating temperature and higher power generation; half-cell technology producing greater resistance to heat spots

Excellent mechanical strength

Passing frontal 5400Pa snow pressure test on the front and backside 2400Pa wind pressure certification test.

Efficient, advanced technology

Applying advanced solar cell technology to 210mm arge size silicon wafers to improve the power and efficiency of modules.
Greater consistency

Highly automatic, full production line advanced production equipment; lossless cutting scribing; intelligent product quality monitoring system.
Higher reliability

Grade A application, grade ll safety, grade C fireproofing; excellent low light, high resistance to salt spray, and ammonia corrosion.

Higher customer value

Effectively reduced BOS cost,lower KWH cost,improved project profitability.
Higher power generation performance

Lower temperature coefficient (-0.34%) and operating temperature and higher power generation; half-cell technology producing greater resistance to heat spots
Excellent mechanical strength

Passing frontal 5400Pa snow pressure test on the front and backside 2400Pa wind pressure certification test.

15-years Product warranty

30-years Linear Power warranty

Piece/Pallet :31

558

Piece/Container (40HQ) :558

Electrical Data (SCT)

STC: AM1.5,lrradiance 1000W/m², Cell Temperature 25°C.

Peak Power(Pmax)(Wp)	650	655	660	665	670
Power Output Tolerance(W)	0~+3%	0~+3%	0~+3%	0~+3%	0~+3%
MPP Voltage(Vmp)(V)	37.40	37.60	37.80	38.00	38.20
MPP Current (lmp )(A)	17.39	17.43	17.47	17.51	17.55
Open Circuit Voltage( Voc)(V)	45.30	45.50	45.70	45.90	46.10
Short Circuit Current(Isc )(A)	18.44	18.48	18.53	18.57	18.62
Module Efficiency ( %)	20.90	21.10	21.20	21.40	21.60

With Different Power Generation Gain

regarding 10% irradiance ratio as an example

Peak Power(Pmax)(Wp)	715	720.5	726	731.5	737
MPP Voltage(Vmp)(V)	37.40	37.60	37.80	38.00	38.20
MPP Current (lmp )(A)	19.13	19.17	19.22	19.26	19.31
Open Circuit Voltage( Voc)(V)	45.30	45.50	45.70	45.90	46.10
Short Circuit Current(Isc )(A)	25.28	20.33	20.38	20.43	20.48

Electrical Data (NMOT)

NMOT:AM1.5, Irradiance 800W/m²,Ambient Temperature 20℃ , Wind Speed1m/s.

Peak Power(Pmax)(Wp)	492	496	500	504	508
MPP Voltage(Vmp)(V)	34.90	35.10	35.30	35.40	35.60
MPP Current (lmp )(A)	14.09	14.13	14.17	14.22	14.26
Open Circuit Voltage( Voc)(V)	42.70	42.90	43.00	43.40	43.40
Short Circuit Current(Isc )(A)	14.86	14.89	14.93	14.96	15.01

Mechanical Properties

Cell Size & Type	210mmX210mmPERC
Number of Cells	132Slices

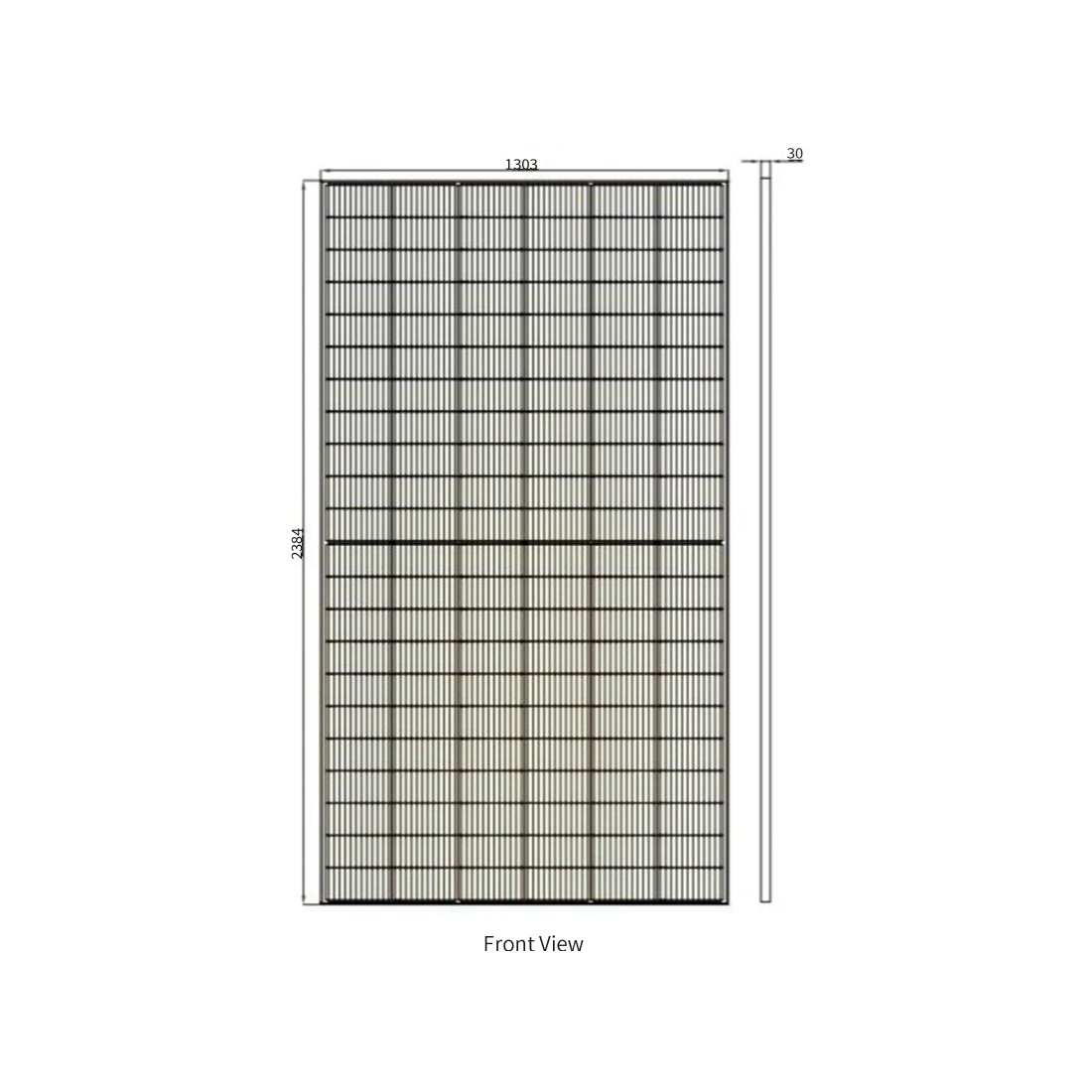

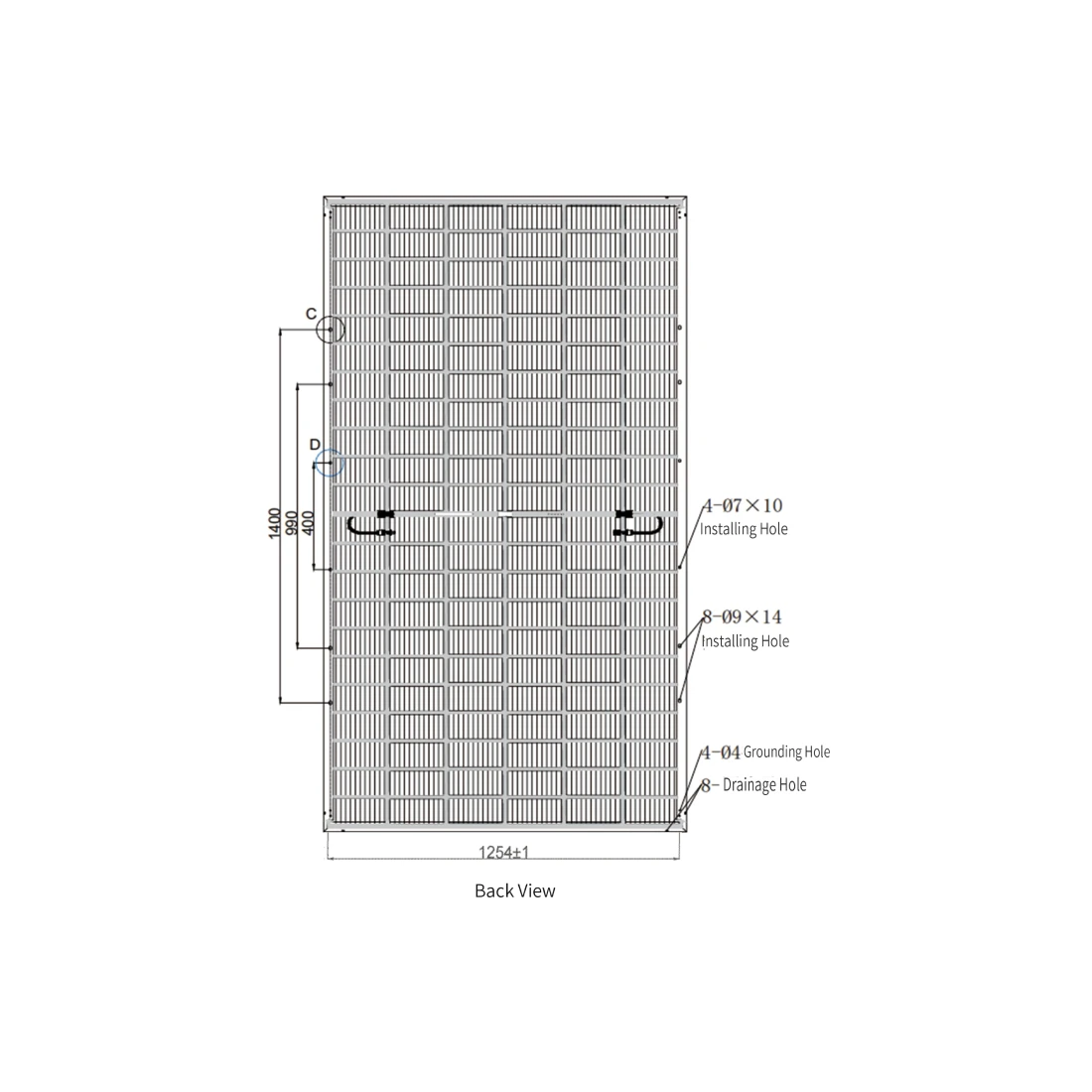

Module Dimension	2384X1303X35mm
Module Weight	38kg
Front Glass Thickness	2.0mmCoated semi-tempered glass
Encapsulating Material	POE
Back Glass Thickness	2.0mmGlazed semi-tempered glass
Frame	35mm
Junction Box	Level of protectionIP68
Cable	4.0mm²,350mmSpecial cable for PV( Cable length can be customized)
Connector	MC4、QC4

Temperature Coefficient

Nominal Operating Cell Temperature(NOCT)		43℃(土2℃)
Temperature Coefficient of Pmax		-0.34%/℃
Temperature Coefficient of Voc		-0.25%/℃
Temperature Coefficient of lsc		0.04%/℃

Operating Properties

Do not parallel two or more module in the same confluence box fuse

Operating Temperature(°c)	-40~+85°C
Maximum System Voltage (v)	1500V DC (IEC)
Maximum Series Fuse Rating(A)	25A
